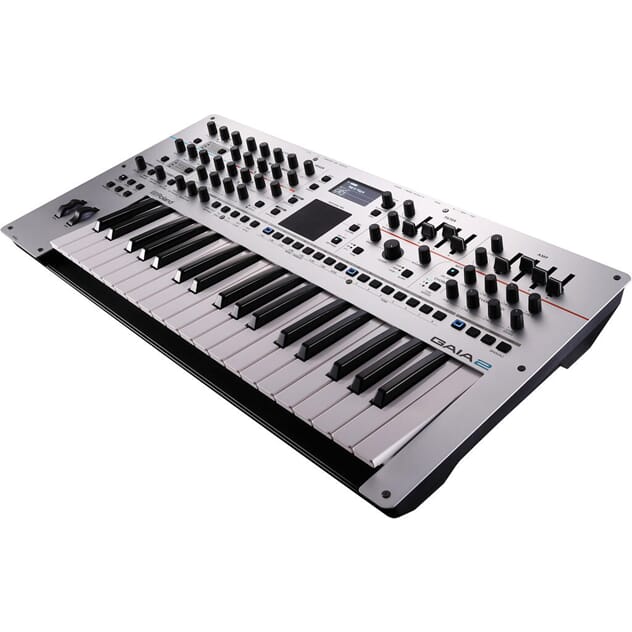

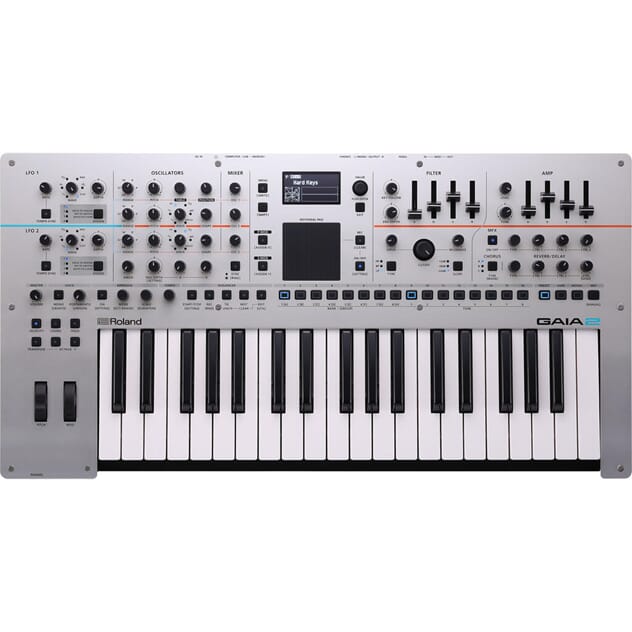

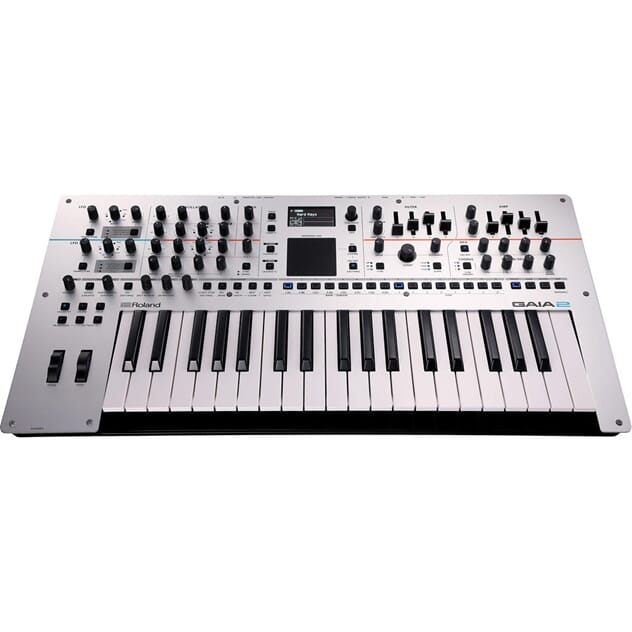

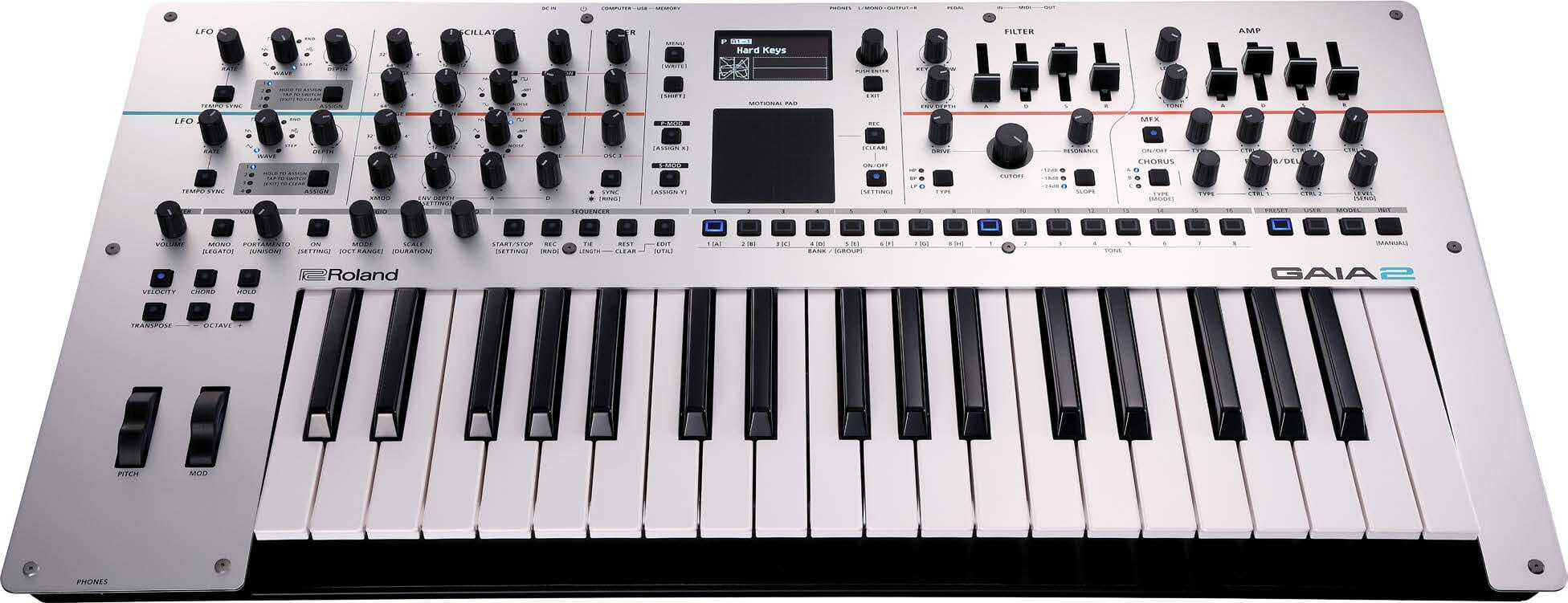

| Tekniske spesifikasjoner | | |---------------------------|----------------------------------| |Keyboard|37 Keys |Sound Generator|GAIA-2 sound generator///Pre-installed Model Expansion SH-101///Other Model Expansions (optional- via Roland Cloud) |Maximum Polyphony|22 voices (3 x oscillators per voice)///* The maximum polyphony varies depending on sound settings or the selected Model Expansion. |Tones|Preset tone: 256///User tone: 512 |Oscillators|OSC 1 (Wavetable): 63 waveforms///Modulation types: Wave position, Phase modulation (P-MOD), Shaping modulation (S-MOD)///OSC 2/3 (Classic waveforms): Sine, Triangle, Saw, Square, Super Saw, and 5 noise waves///Modulation types: Shape, Ring modulation, Oscillator sync, Cross modulation 1, Cross modulation 2///Envelope: Attack, Decay///Envelope destination: Pitch, Oscillator 1 position, Oscillator 2 shape, Oscillator 3 shape, P-MOD X, P-MOD Y, S-MOD Depth, S-MOD Drive |Filter|Filter type: LPF, BPF, HPF///Filter slope: -12dB/Oct, -18dB/Oct, -24dB/Oct///Envelope: Attack, Decay, Sustain, Release///Filter Drive |Amp|Envelope: Attack, Decay, Sustain, Release |LFO|2 LFOs, 5 waveforms and 1 programmable step LFO wave///LFO assignment: Up to 4 parameters from panel knobs and sliders (except for click dials) in each LFO |Effects|Multi-Effects: 53 types///Reverb/Delay: 7 types///Chorus: 3 types (9 modes in total)///* The sound path order of the above effects can be changed.///Master EQ///Master Compressor |Other Functions|Portamento///Unison///Chord memory |Step sequencer|64 steps : Each step can record 8 notes and 4 controls///Recording modes: Real-time/Step/TR-REC///Probability///Random pattern generator |Arpeggiator|Mode: Up, Down, Up&Down, Random, Note Order///Scale: 16 variations |Motional Pad|Two dimensional edit to P-Mod X/Y or S-Mod Depth/Drive///Two dimensional assignable control to parameters of panel knobs and sliders (except for click dials)///Motion recording and playback function///Menu interface with a drag pointer |Other Controllers|Pitch Bend wheel///Modulation wheel |Display|OLED 128 x 64 dots |Connectors|HEADPHONES jacks: Stereo miniature phone type (front), Stereo 1/4-inch phone type (rear)///OUTPUT jacks (L/MONO, R): 1/4-inch phone type///PEDAL jack: Stereo 1/4-inch phone type (available for a hold pedal or a control pedal)///MIDI connectors (IN, OUT)///USB COMPUTER port: USB Type-C(R) (Class Compliant for Audio and MIDI/ Roland driver for Audio and MIDI)///USB MEMORY/EXT DEVICE port: Type-A (Storage, MIDI) |Power Supply|AC adaptor (DC IN port)///USB bus power supply (USB Type-C(R) port)///* External power supply from a USB Type-A port isn't available. |Current Draw|600 mA (AC adaptor)///1,800 mA (USB bus power supply) |External Memory|USB Flash drive (commercially available) |Accessories|Startup Guide///Leaflet "USING THE UNIT SAFELY"///AC adaptor (PSB-5U)///Power cord |Options (sold separately)|Pedal Switch: DP series///Expression Pedal: EV-5///Wireless Adapter: WC-1///Keyboard Bag: CB-B37 |SIZE AND WEIGHT|Width:655 mm///Depth:336 mm///Height:92 mm///Weight4.4 kg
